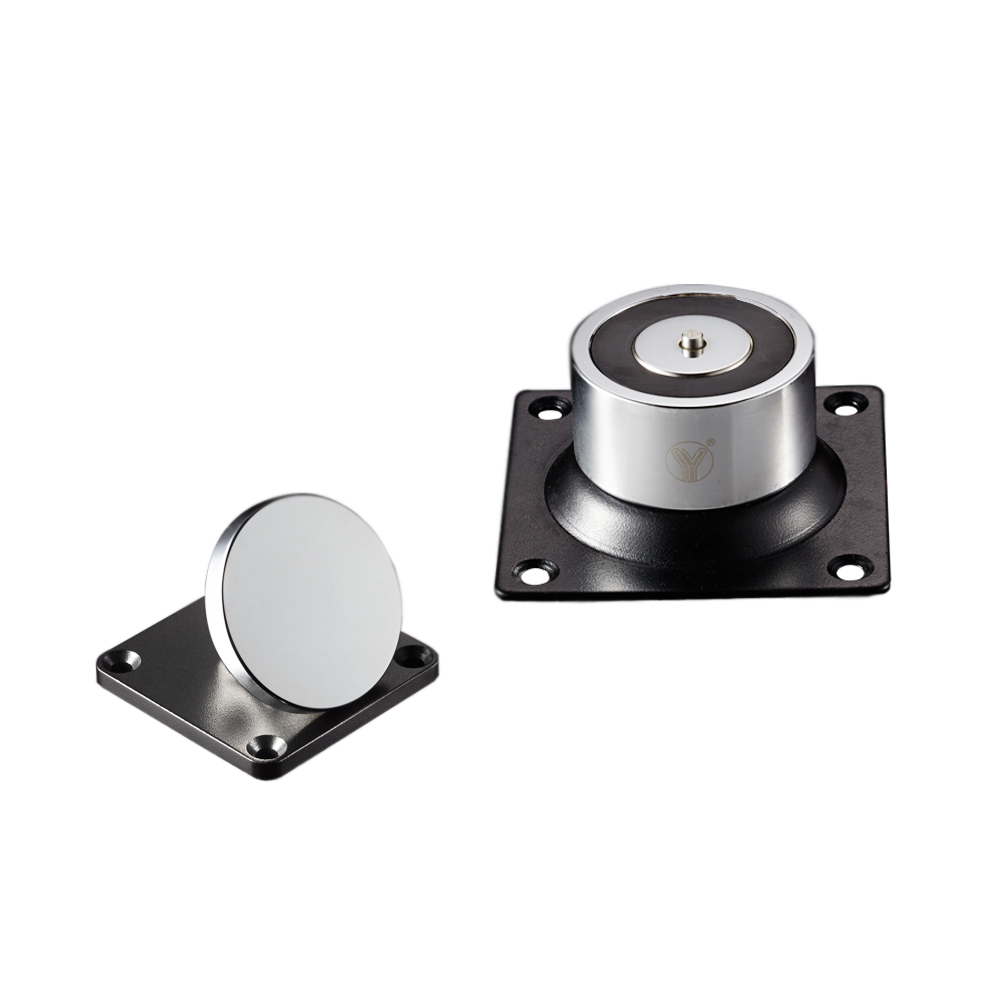

Basic Wall Mount Door Holder


YD-601L is a standard type wall mount door holder .which adopts low power consumption, that makes it more environment friendly and more durable. can withstand 180kg(350pounds)holding force(Collinear Load) .Professional anti-residual magnetism design ensures highest security. Automatically close the smoke proof door when fire happens. It also contains build-out release button for testing and build-in MOV which reverse current protection.

SKU: YLI YD-601L Category: Tag:


Product Parameter Parameter Description
Dimensions  90Lx90Wx47H(mm)
Holding Force  180kg(350Lbs)
Voltage  12/24 VDC+/- 10% (Adjustable)
Current Draw  12V/240mA     24V/120mA
Suitable for   All Kind of  Single & Double Smokeproof Doors
Surface Temp  ≤+20℃
Operating Temp  -10~+55℃(14-131F)
Suitable Humidity  0~90%(relative humidity)
Finishes for Shell  High Temperature Paint and Environmental Protection Zinc
Finishes for Armature  Zinc
Weight  1.0kg

Download Data Sheet
