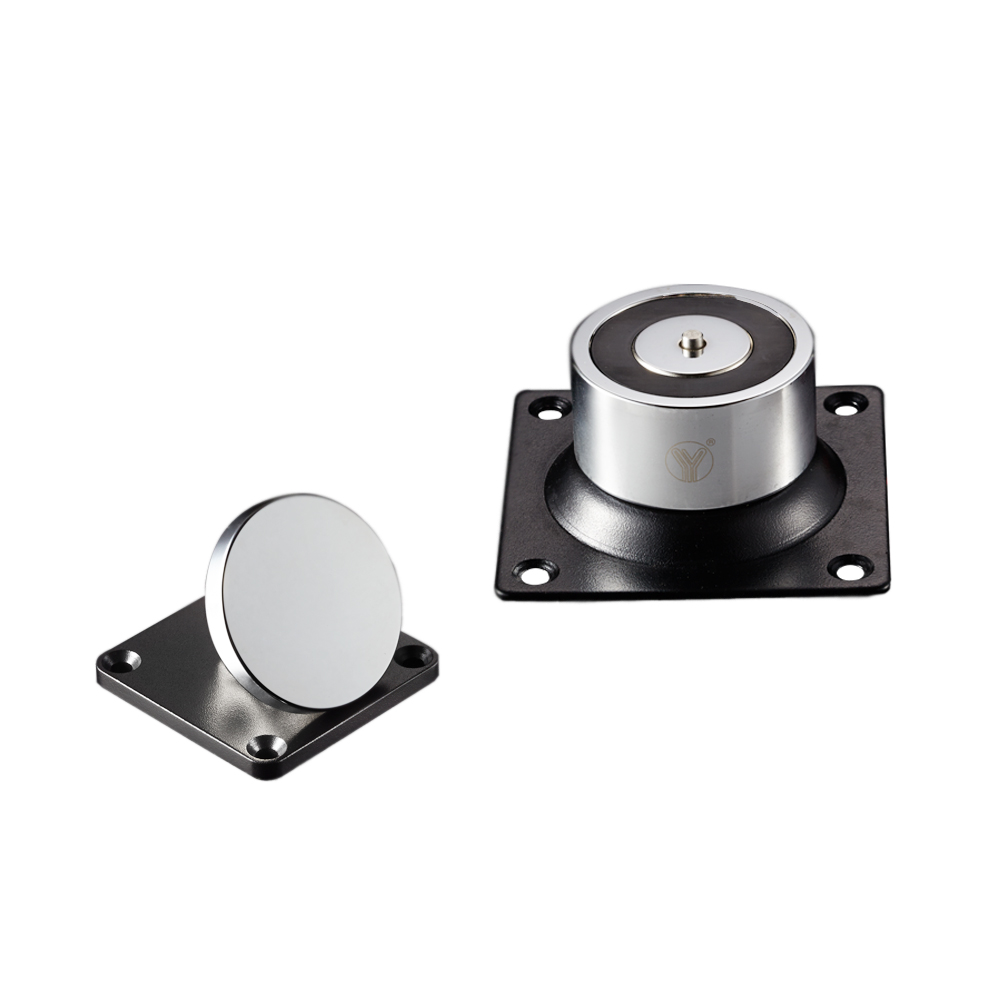

Basic Wall Mount Door Holder


YD-601 is a standard type wall mount door holder .which adopts low power consumption, that makes it more environment friendly and more durable. The Holding Force(Collinear Load) is 50kg(110Lbs)Professional anti-residual magnetism design ensures highest security. It will release automatically the fire door when fire alarms. It also contains build-out release button for testing and build-in MOV which reverse current protection.

SKU: YLI YD-601 Category: Tag:


Product Parameter Parameter Description
Dimensions  L80xW80xH40(mm)
Holding Force  50kg(110Lbs)
Voltage  12/24 VDC+/- 10% (Adjustable)
Current Draw  12V/140mA     24V/70mA
Suitable for   All Kind of  Single & Double Smokeproof Doors
Surface Temp  ≤+20℃
Operating Temp  -10~+55℃(14-131F)
Suitable Humidity  0~90%(relative humidity)
Finishes for Shell  High Temperature Paint and Environmental Protection Zinc
Finishes for Armature  Zinc
Weight  0.85kg

Download Data Sheet
