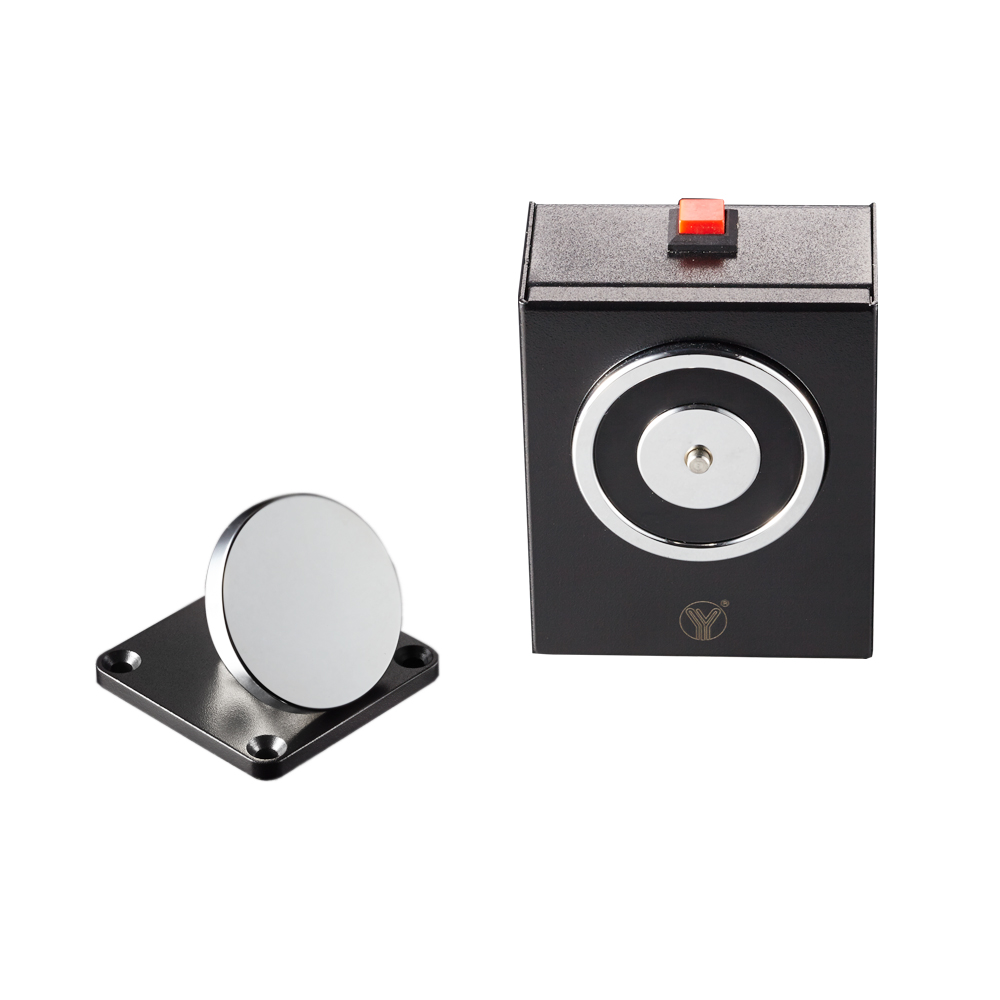

Wall Mount Door Holder


YD-604 is a wall mount door holder .the Maximum tension achieves 50kg(110Lbs),with the feature of environmental friendly low power consumption. It will release automatically the fire door in case of fire.It also contains build-out release button for testing and build-in MOV which reverse current protection.

SKU: YLI YD-604 Category: Tag:


Product Parameter Parameter Description
Dimensions  70Lx40Wx85H(mm)
Holding Force  50kg(110Lbs)
Voltage  DC24V+10%(12VDC need order)
Current Draw  12V/180mA     24V/70mA
Optional   Manual door release button
Suitable for  All Kind of Single & Double Smokeproof Doors
Surface Temp  ≤+20℃
Operating Temp  -10~+55℃(14-131F)
Suitable Humidity  0~90%(relative humidity)
Finishes for Shell  High Temperature Paint and Environmental Protection
Finishes for Armature  Zinc
Weight  0.9kg

Download Data Sheet
