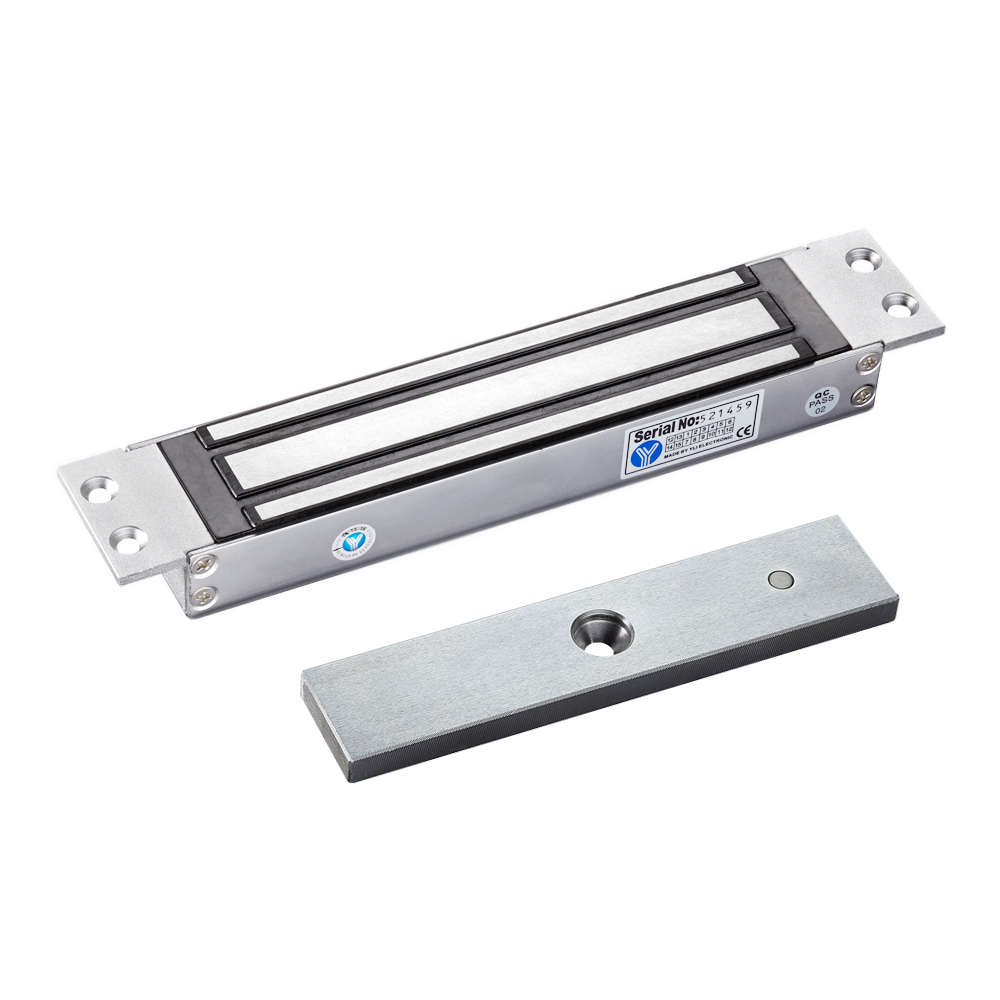

Magnetic Lock 280kg/600lbs Mortice & Monitored


Signal output magnetic lock for single glass door, wooden door, fireproof door, metal door. Mortise mount and easy installation are reserved . Accessories are available for all kinds of doors.

SKU: YLI M-280MS Category: Tag:


Product Parameter Parameter Description
Size 231.6Lx41.6Wx24.5H(mm)
Armature Plate Dimension 180Lx38Wx11H(mm)
Holding Force 280kg(600Lbs)
Input Voltage 12 or 24VDC
Current 12V/500mA or 24V/250mA
Suitable Wooden door , Glass door ,Metal door , Fireproof door
Surface Temp ≤+20℃
Operating Temp  -10~+55℃(14-131F)
Humidity  0~90%(non-condensing)
Cover Finish Anodized aluminum
Lock Finish Zinc
Armature Plate Finish Zinc
Weight 2.1kg

Download Data Sheet

Additional information

Weight 2.1 kg
