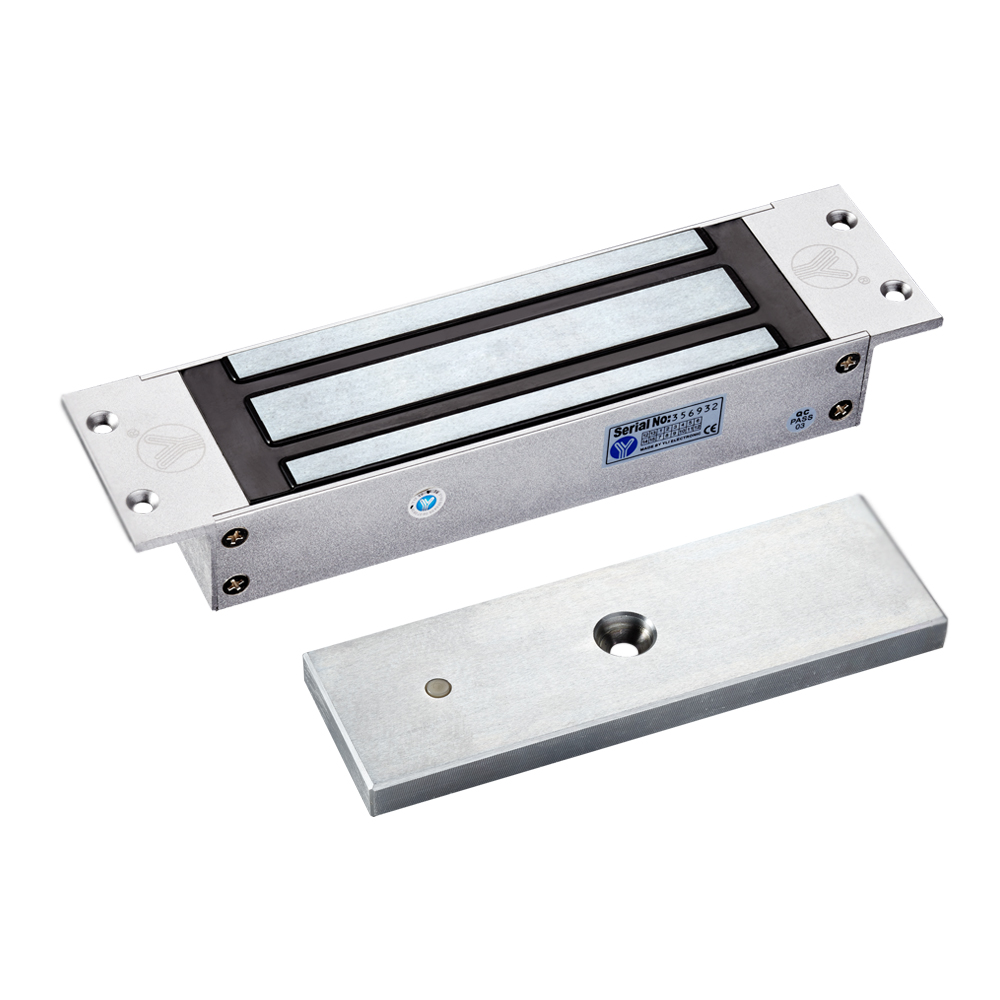

Magnetic Lock 545kg/1200lbs Mortice Mount and Monitored


It is with signal output.1200lbs holding force single door electric lock is for wooden door, fireproof door,metal door.Mortise mount and easy to install .

SKU: YLI M-500MS Category: Tag:


Product Parameter Parameter Description
Size  254Lx65.8Wx38.8H(mm)
Armature plate  185Lx60Wx13H(mm)
Holding Force  500kg(1200Lbs)
Voltage  12 or 24VDC
Current Draw  12V/420mA or 24V/210mA
Suitable for  Wooden door , Glass door ,Metal door , Fireproof door
Signal Output  Dry Contact,Max Rating of Contact Current 3A
Surface Temp ≤+20℃
Operating Temp -10~+55℃(14-131F)
Suitable Humidity 0~95%(non-condensing)
Finishes for Shell  Anodized aluminum
Finishes for Magnetic  Zinc
Finishes for Armature Zinc
Weight  4.5kg

Download Data Sheet
