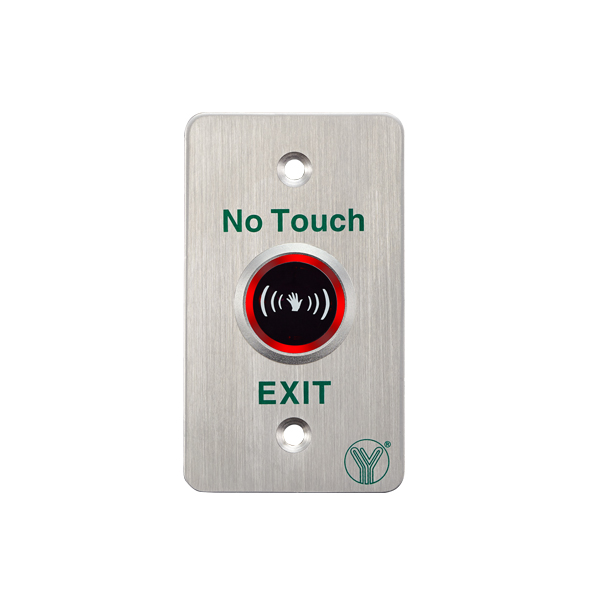

No Touch Exit Switch (Infrared sensor)

R509.21

ISK-841B is an Infrared Sensor Exit Button with stainless steel in size of 86Lx50Wx37.7H(mm) suitable for all kinds of locks.

Description

Product Parameter Parameter Description
Dimensions 86Lx50Wx37.7H(mm)
Input DC12V
Contact Rating 1A@30VDC,0.5A@125VAC
Output Contact NO/NC/COM
Mechanical Life 1,000,000 tested
Suitable for Door Hollow Door
Operating temp -20℃~+55℃(14-131F)
Suitable Humidity 0-95% (relative humidity)
Detection range 4-10cm(Adjustable)
Time delay 0.5~25s(Adjustable)
LED Indicator White LED indicator: Power OFF
Red  LED indicator: Power ON(standby)
Green LED indicator: Power ON(sensation)
Weight 0.18kg

Download Data Sheet
