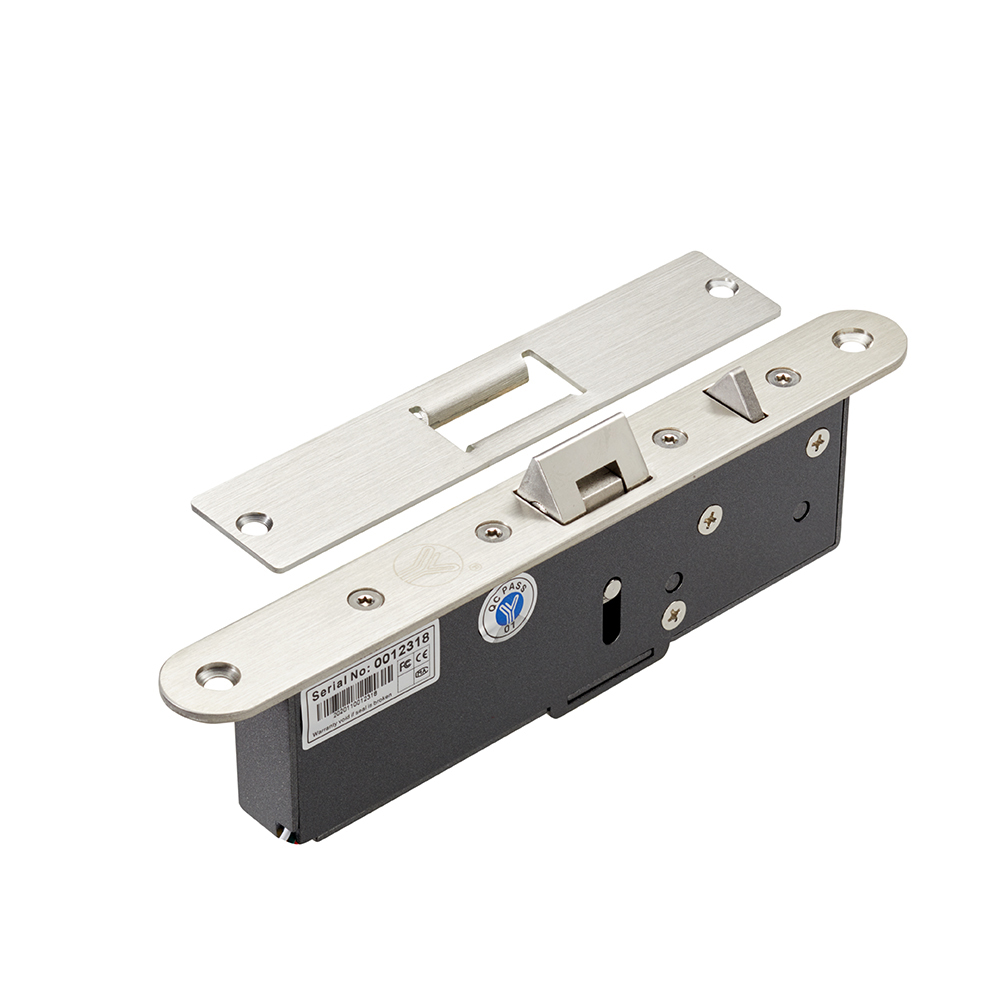

European Type Electric Mechanical Lock Mortice

R2,421.06

YML-650A is our electromechanical lock, which is suitable for one-way open and two-way open doors, including wooden door, metal door, framed glass door etc. Stainless steel housing, unique design for safety requirement, switches to working mode by manual control. All linkages are metal structure. Work normally under the temperature between -40℃and 60℃.Pass 500000 times test. Outstanding performance, prior choice for project.

SKU: YLI YML-650A Category:

Description

Factory default NC ; NO(Adjustable)
NC ; NO NC: when door is closed,power on to lock, power off to unlock
NO: poer off to lock, power on to unlock
Face Plate 210Lx25Wx51.9H
Strike Standard Strike Plate: 150Lx30Wx1.5H;
Optional Strike Plate(for single swing door):150Lx48.7Wx1.5H;
Optional Strike Plate(for double swing door):150Lx67.5Wx1.5H
Magnetic Valve >500000 times
Voltage 12~24VDC/AC
Current ≤300mA
Signal Output NO/NC/COM contact, only when achieve locking and door closing, signal output will switch
Operating temp -20℃~+50℃
Weight 0.8kg

Download Data Sheet
