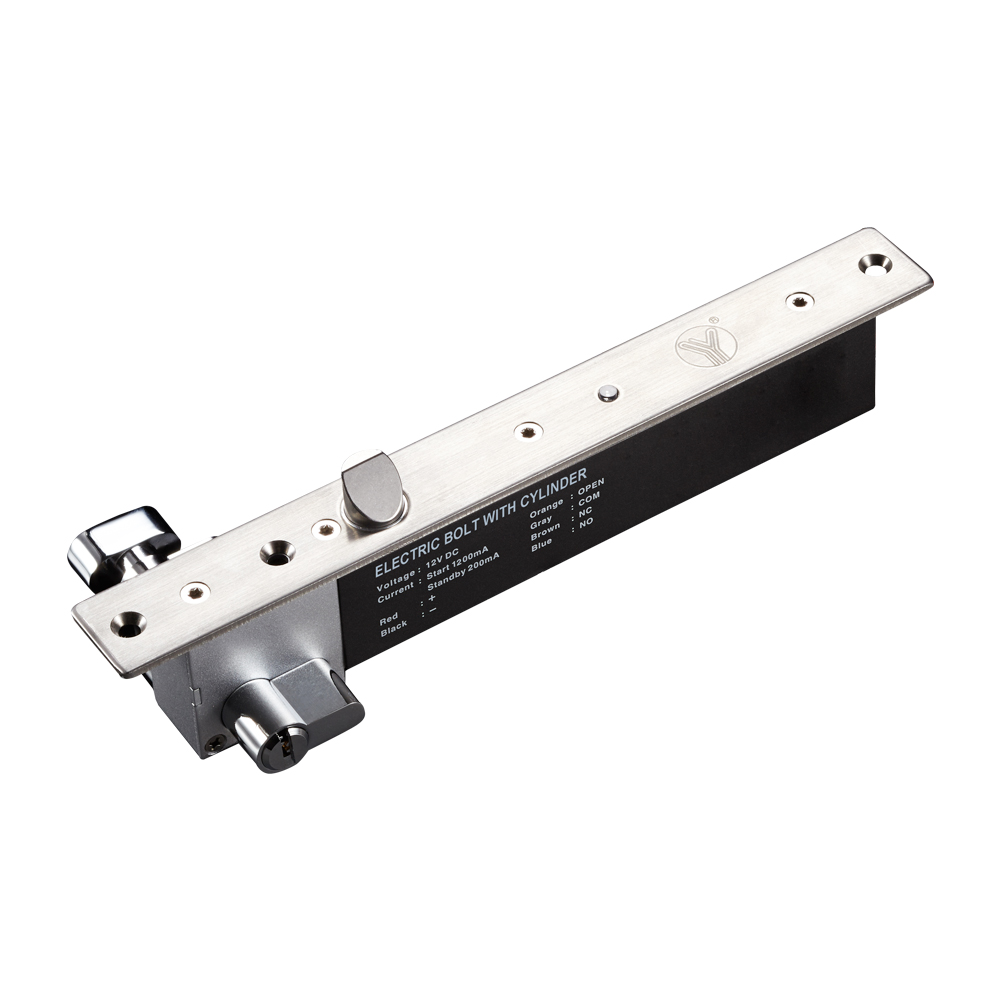

Electric Bolt With Cylinder Fail Secure

R3,342.50

YB-600C (LED) is an all-metal construction electric bolt.with European-type cylinder and has both electric control and manual control functions and special latch bolt Design.The special design of all-metal linkage parts results it can bear with the temperature of 60 ℃ or -40 ℃ below zero .Special adopts 304 stainless steel Bolt by CNC lathe, can withstand 2000kg holding force.

SKU: YLI YB-600C(LED) Category: Tag:

Description

Product Parameter Parameter Description
Feature Fail Secure
Lock Body 270Lx30WX48H(mm)
Magnetic Plate 100Lx25Wx2.5H(mm)
Bolt 16(length)*16(diameter)(mm)
Voltage DC12V
Start Current 1200mA
Standby Current 200mA
LED Light on indicates locked, light off indicates unlocked
Suitable For Wooden door , metal door , fireproof door , glass door
Signal Output Lock signal NO/NC/COM(need order door signal)
Material 304 stainless steel,wire draw finishing
Induction Distance Within 8mm
LED Light on indicates locked, light off indicates unlocked
Weight 1.6kg

Download Data Sheet
