Sturdiness electric bolt with cylinder Fail Secure

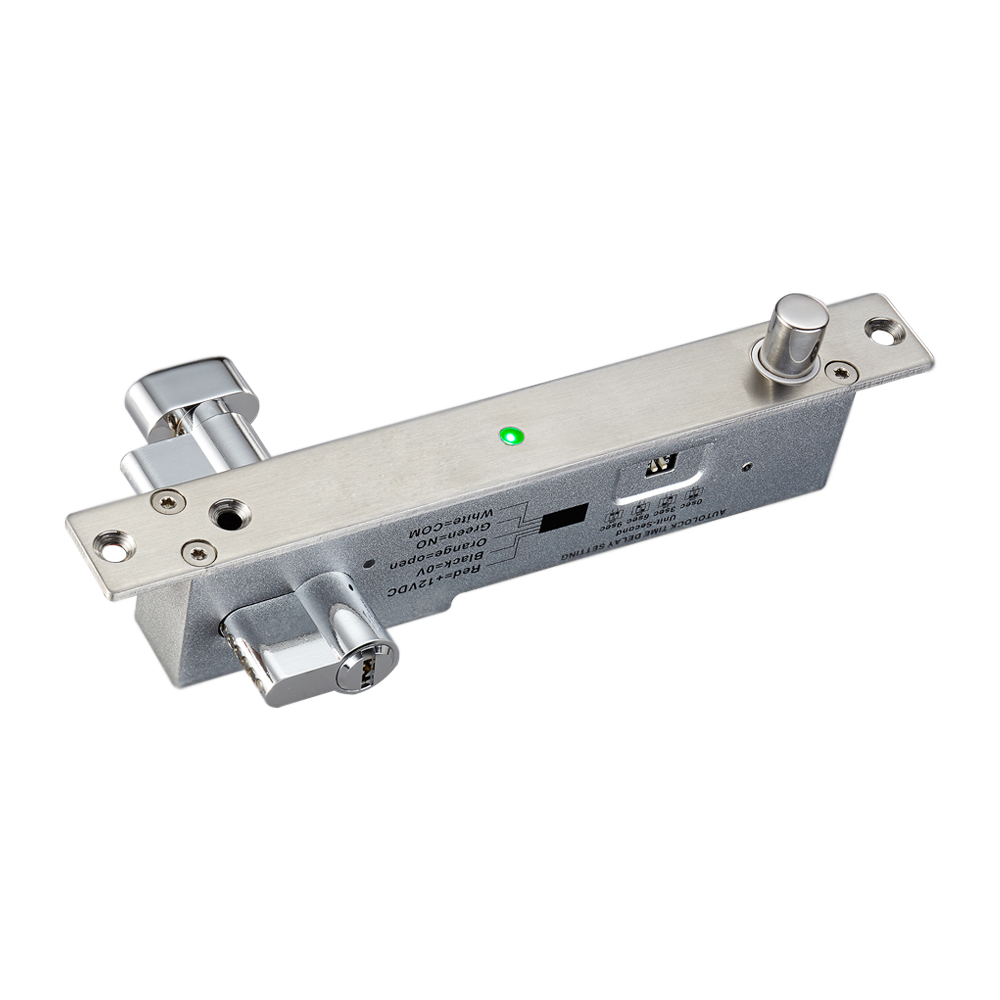

YB-500C (LED) is an all-metal construction electric bolt .with European-type cylinder and has both electric control and manual control functions. The bolt has 1000kg holding force adopts high class stainless steel material.the all-metal linkage parts contribute the bolt tobe worked the temperature of 60 ℃ or -40 ℃.The reliable magnetic valve and special photoelectric control system, Cryo Fundamentals and power consumption design, Intelligent circuit ,reveal its feature of multifunctional and creativeness

SKU: YLI YB-500C Category: Tag:


Product Parameter Parameter Description
Feature Fail Secure
Face Plate 210Lx25WX42H(mm)
Strike 90Lx25Wx3H(mm)
Bolt 16(length)*13(diameter)(mm)
Voltage 12VDC(24VDC need order)
Start Current 960mA
Standby Current 180mA
Feature Fail secure
Autolock Time Delay 0,3,6,9sec
Door statue signal output contact NO、COM
Cylinder One side is key, another side is knob
Solid Bolt Holding Force 1000Kg
Suitable For wooden door,metal door, PVC door
Surface Temp Low Temperature
Induction Distance 8mm
LED Light on indicates locked, light off indicates unlocked
Special Designed Tested to 500000 operations
Face place material 304 stainless steel, wire draw finishing
Weight 1.0kg
