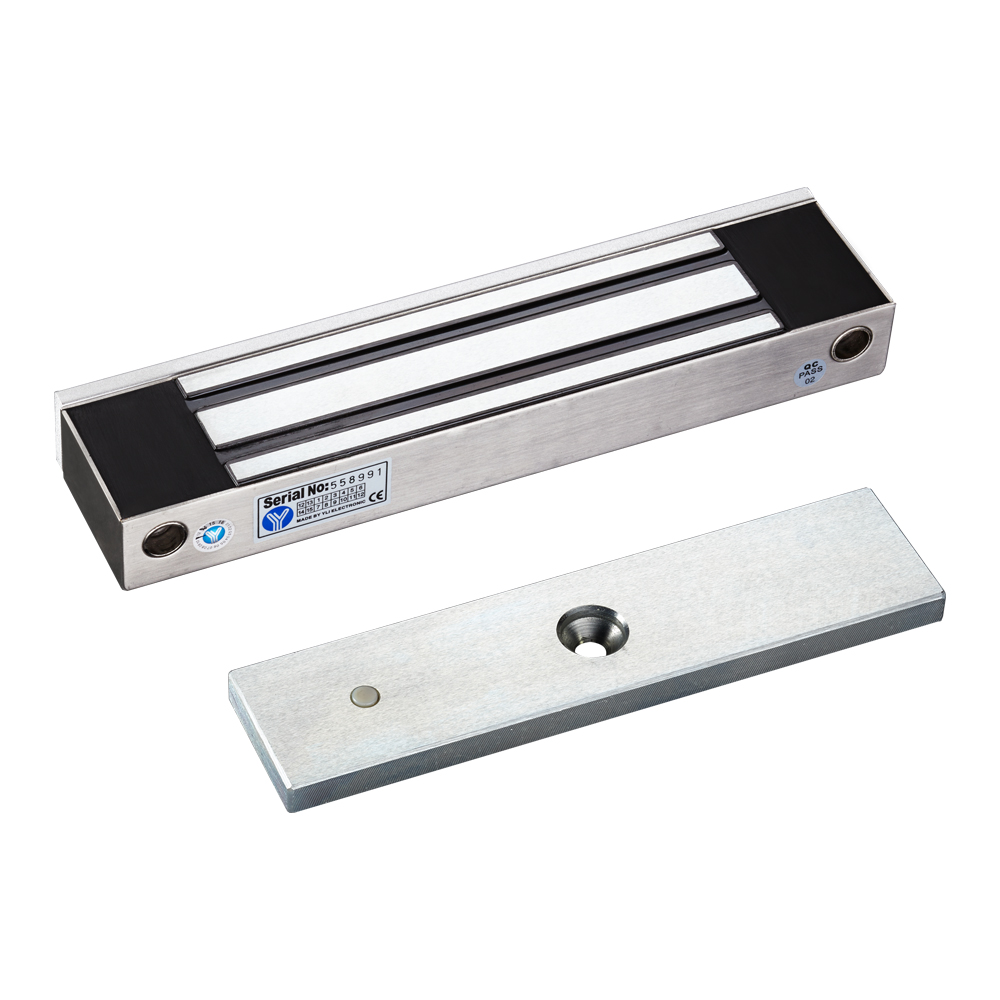

Magnetic Lock 350kg/790lbs Surface Mount Waterproof

R2,360.65

Single door electric lock with waterproof function.100% waterproof treatment. Used for metal door, heavy door and so on.it is with signal output and all the accessories are sealed inside the lock cylinder.

SKU: YLI M-350W-S Category: Tag:

Description

Product Parameter Parameter Description
Lock Size  227.6Lx52.6Wx28.5H(mm)
Armature plate  190Lx45Wx11H(mm)
Holding Force  350kg(800Lbs)
Voltage  12 or 24VDC
Current Draw:  12V/480mA or 24V/240mA
Suitable for  Wooden door , Glass door ,Metal door , Fireproof door
Signal Output  Dry Contact,Max Rating of Contact Current 3A
Surface Temp ≤+20℃
Operating Temp -10~+55℃(14-131F)
Suitable Humidity 0~95%(non-condensing)
Finishes for Shell  Anodized aluminum
Finishes for Magnetic  Zinc
Finishes for Armature  Zinc
Weight  2.7kg

Download Data Sheet
