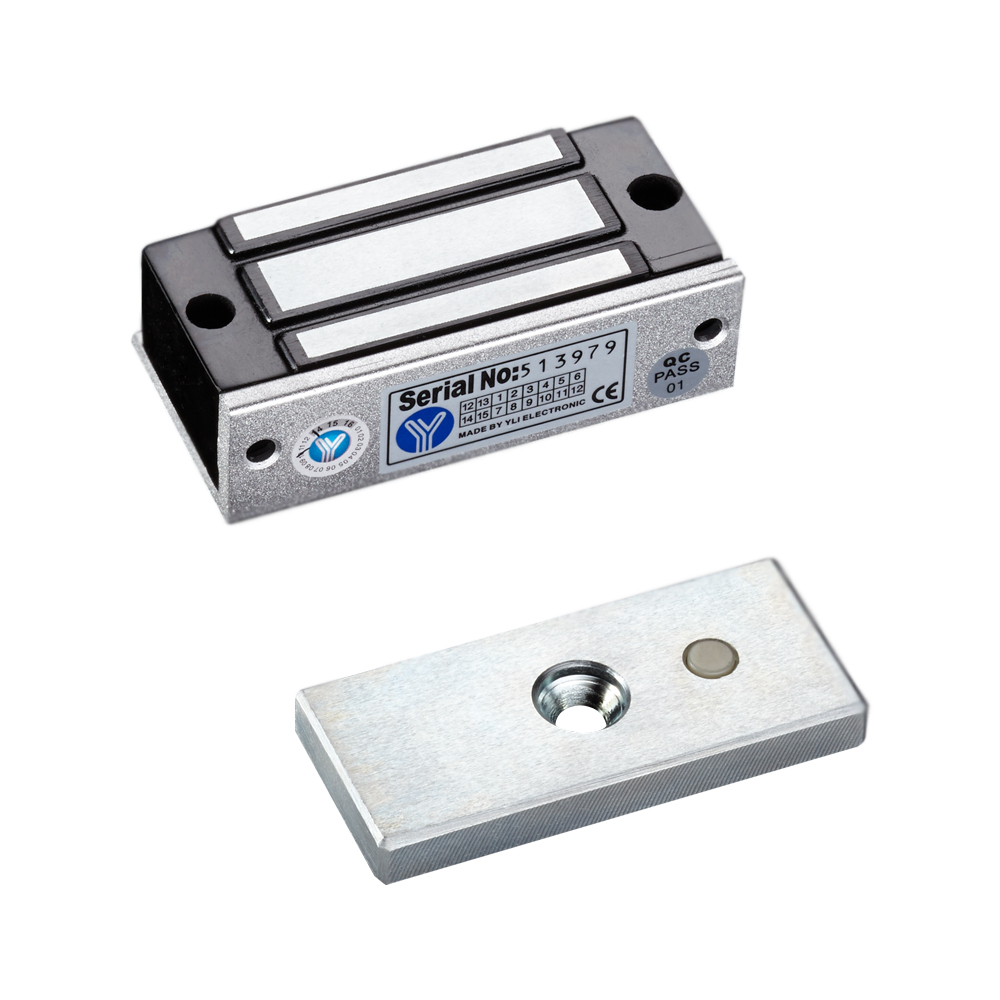

Magnetic Lock 70kg /100 Lbs Mini Surface Mount


A mini single electric lock with signal output and easy installation , it is designed for showcase, cabinet door with a Holding force of 140lbs.

SKU: YLI M-.70 S Category: Tag:


Product Parameter Parameter Description
Size 90Lx39Wx24.5H(mm)
Armature Plate Dimension 90Lx33Wx9.8H(mm)
Holding Force 70kg(140Lbs)
Input Voltage 12 or 24VDC
Current 12V/240mA or 24V/120mA
Suitable File Cabinet ,Display Cabinet
Surface Temp ≤+20℃
Operating Temp -10~+55℃(14-131F)
Humidity 0~90%(non-condensing)
Cover Finish Anodized aluminum
Lock Finish Zinc
Armature Plate Finish Zinc
Weight  0.7KG

Data Sheet Download

Additional information

Weight 0.7 kg
