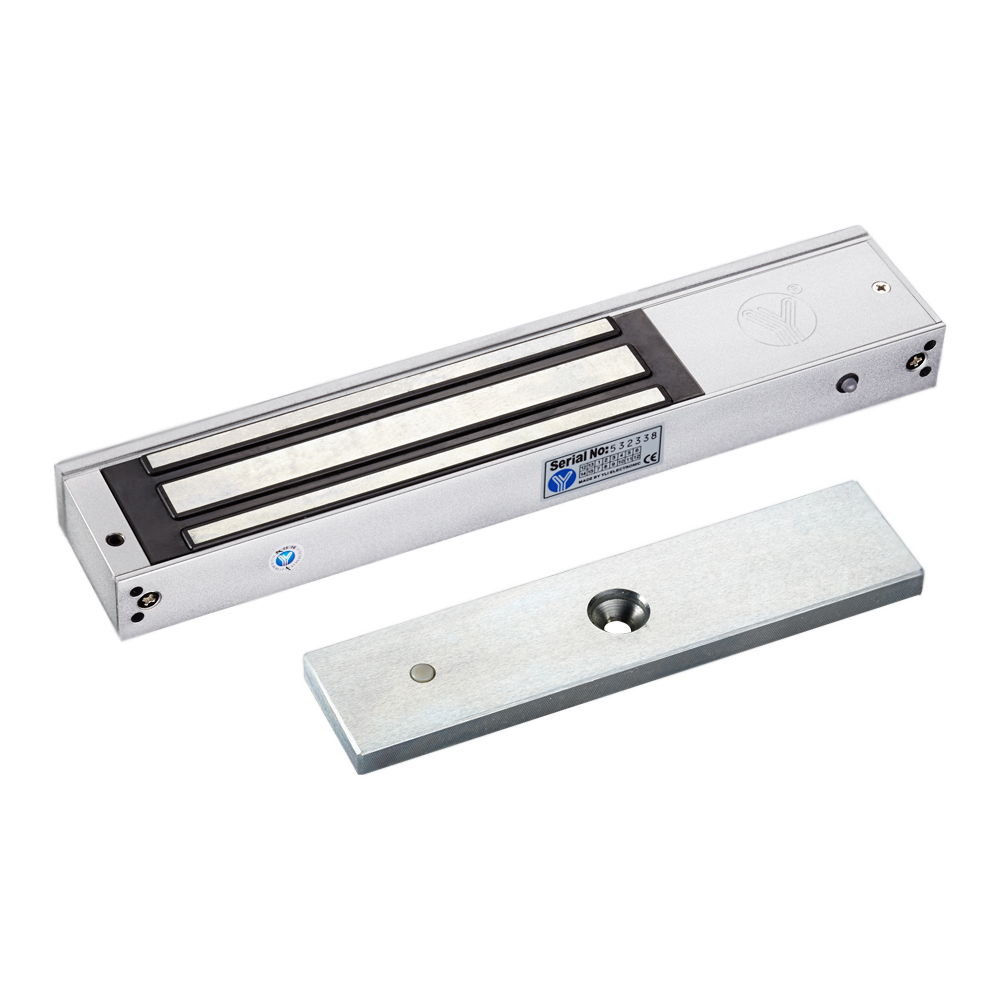

Magnetic Lock 365kg/800lbs Surface Mount

R2,119.06

Single door electric lock is for glass door, wooden door, fireproof door, sliding door and metal door. Inbuilt dry contacts lock status signal output ( NO,NC,COM) and LED indicator to indicate the lock status.

SKU: YLI M-350LED Category: Tag:

Description

Product Parameter Parameter Description
Lock Size 285Lx55Wx27.5H(mm)
Armature plate 190Lx45Wx11H(mm)
Holding Force 350kg(800Lbs)
Voltage 12 or 24VDC
Current Draw 12V/480mA or 24V/240mA
Signal Output Dry Contact,Max Rating of Contact Current 3A
LED Red indicates the door is unlocked,Green indicates the door is locked
Suitable for Wooden door , Glass door ,Metal door , Fireproof door
Surface Temp ≤+20℃
Operating Temp -10~+55℃(14-131F)
Suitable Humidity 0~95%(non-condensing)
Finishes for Shell Anodized aluminum
Finishes for Magnetic Zinc
Finishes for Armature Zinc
Weight 2.7kg

Download Data Sheet
