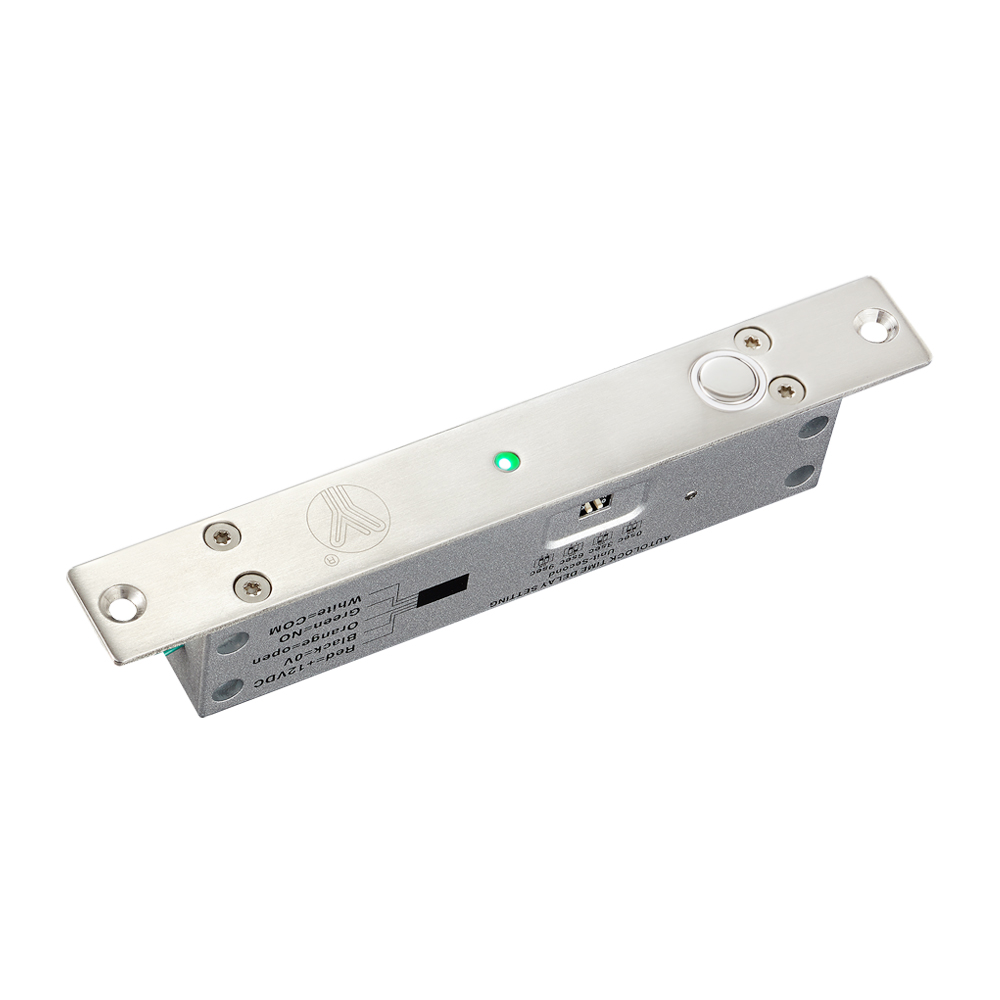

Sturdiness Electric Bolt Fail Safe


YB-500A (LED) is an Narrow panel all-metal construction electric bolt .with Autolock Time Delay function. The security type of this Bolt is Locked when energizedIn order to meet with special security standard . The bolt is made of 304 stainless steel solid bar by CNC lathe and with burglary resistant design .Able to worked in the temperature of 60 ℃ or -40 ℃

SKU: YLI YB-500A Category: Tag:


Product Parameter Parameter Description
Feature Fail Safe
Face Plate 192Lx25WX37H(mm)
Strike 90Lx25Wx2H(mm)
Bolt 16mmDIA,stainless steel 13mm throw
Voltage 12VDC(24VDC need order)
Start Current 960mA
Standby Current 180mA
Feature Fail safe
Autolock Time Delay 0,3,6,9sec
Solid Bolt Holding Force 1000Kg
Lock cylinder material Stainless Steel
Face place material kirsite
Led With Led Indicate
Suitable For Wooden Door,Glass Door,Metal Door,PVC Door
Door statue signal output contact NO/COM
Surface Temp Low Temperature
Induction Distance 8mm
LED Light on indicates locked, light off indicates unlocked
Special Designed Tested to 500000 operations
Face place material 304 stainless steel, wire draw finishing
Weight 0.68kg

Download Data Sheet
