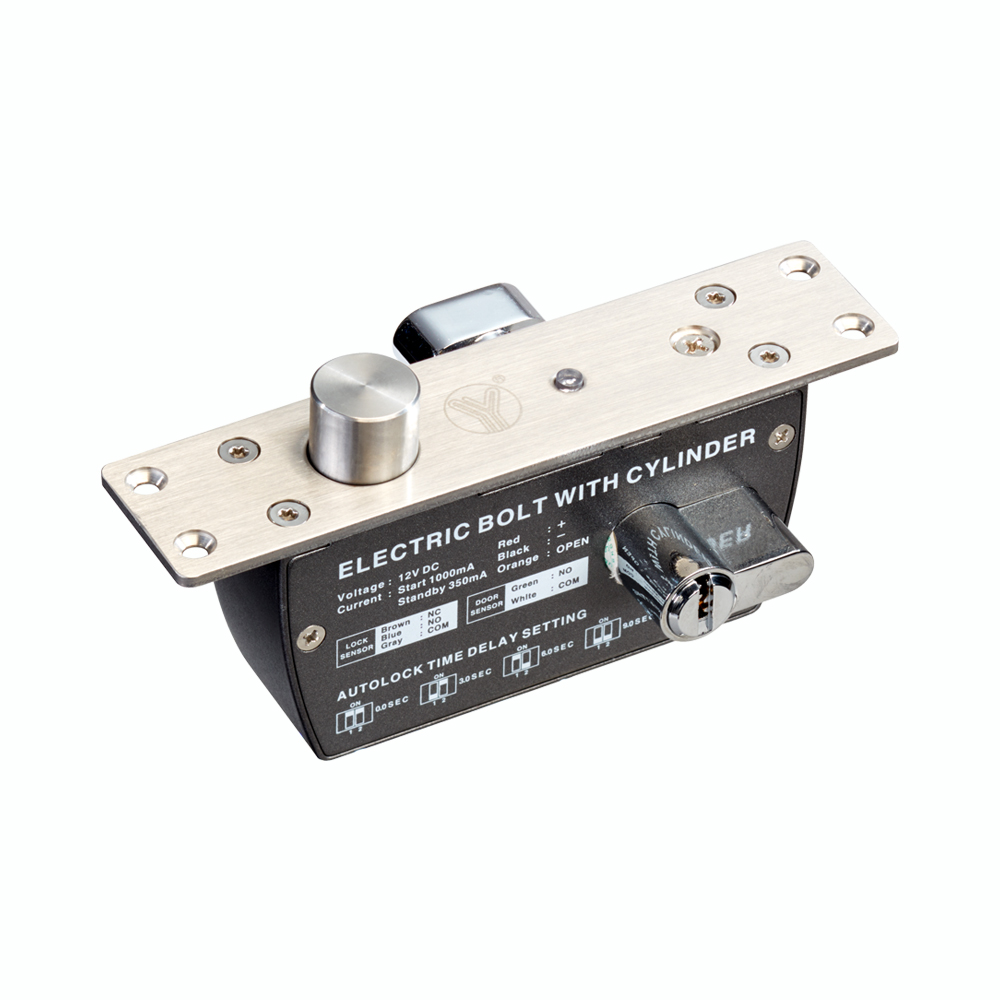

Fail Secure Electric Bolt With Cylinder


YB-620(LED) is an all-metal construction electric bolt. With European-type cylinder and has both electric control and manual control functions. The Fail Secure is Unlocked when energized. Under the temperature of 60 ℃ or -40 ℃ below zero it can be operated normally benefit by the all-metal linkage parts. The 304 stainless steel bolt can withstand 2000kg holding force.

SKU: YLI YB-620(LED) Category: Tag:


Product Parameter Parameter Description
Feature Fail Secure
Lock Body 150Lx36WX57H(mm)
Magnetic Plate 150Lx36Wx3H(mm)
Bolt 16.5(length)*20(diameter)(mm)
Voltage DC12V
Start Current 1000mA
Standby Current 350mA
LED Light on indicates locked, light off indicates unlocked
Suitable For Wooden door , metal door , fireproof door , glass door
Autolock Time Delay 0,3,6,9sec
Signal Output Lock signal(NO/NC/COM);Door signal(NO/COM)
Material 304 stainless steel,wire draw finishing
Induction Distance Within 8mm
LED Light on indicates locked, light off indicates unlocked
Weight 1.25kg
