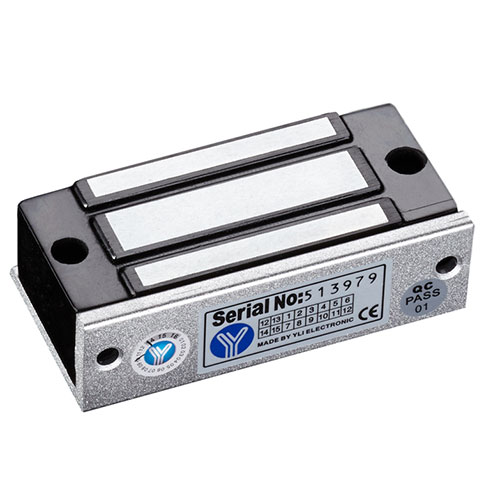

Magnetic Lock 40kg /88 Lbs Mini Surface Mount

R569.91

YM-40 is a mini single door electric lock, it is designed for showcase, cabinet door and easy to install . The holding force is 120lbs.

SKU: YLI M-.40 Category: Tag:

Description

Product Parameter Parameter Description
Size 70Lx36.5Wx24H(mm)
Armature Plate Dimension 75Lx32Wx10H(mm)
Holding Force 40kg(880Lbs)
Input Voltage DC12V/24V
Current 12V/160mA    24V/80mA
Suitable File Cabinet ,Display Cabinet
Surface Temp ≤+20℃
Operating Temp   -10~+55℃(14-131F)
Humidity 0~90%(non-condensing)
Cover Finish Anodized aluminum
Lock Finish  Zinc
Armature Plate Finish  Zinc
Weight  0.35KG

Data Sheet Download

Additional information

Weight 0.35 kg
